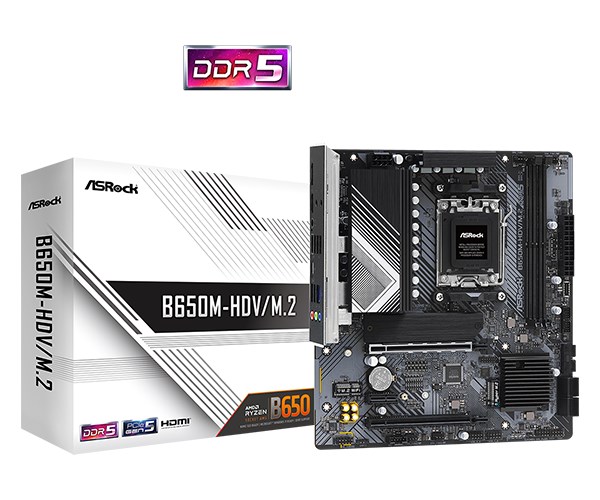

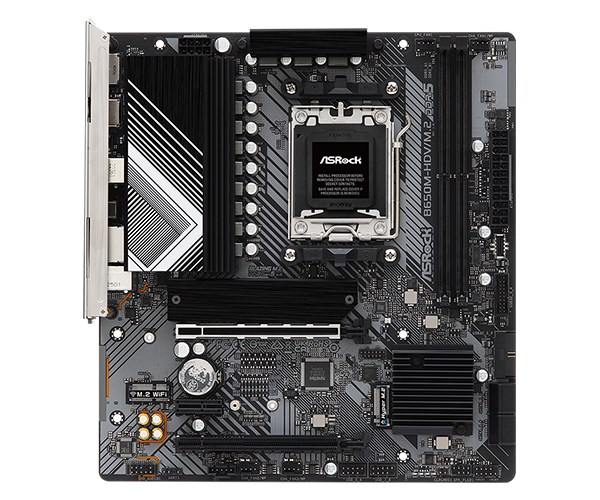

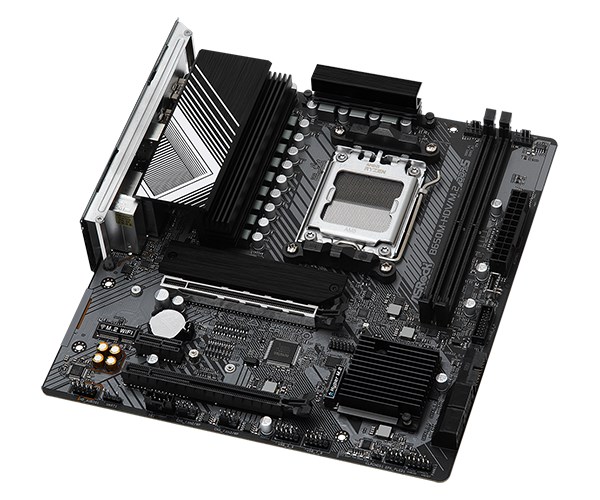

ASRock MB Sc AM5 B650M-HDV/M.2, AMD B650, 2xDDR5, 1xDP, 1xHDMI, mATX

ASRock MB Sc AM5 B650M-HDV/M.2, AMD B650, 2xDDR5, 1xDP, 1xHDMI, mATX

Name: ASRock MB Sc AM5 B650M-HDV/M.2, AMD B650, 2xDDR5, 1xDP, 1xHDMI, mATX
Brand: ASRock
SKU: 89082
Price: 2333 CZK
Availability: InStock

Ohodnotit produkt

Formát základní desky:micro ATX; Chipset:AMD B650; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:2; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI Express x1:1; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0 celý popis

Dostupnost

Skladem 99 ks

2 333 Kč

/ ks

1 928 Kč

bez DPH

Číslo produktu:sde-380896

EAN kód:4710483942693

Výrobce:ASRock

Záruka:36 Měsíc(ů)

Hlídat cenu / dostupnost

Doprava zdarma při objednávce od 5000 Kč

Servis tiskárenV Plzni již od roku 1998

Kamenná prodejna v PlzniŠimerova 428/3, Plzeň

Oprava počítačů a notebookůRychle a odborně

Kompletní specifikace
Hodnocení 0
ASRock MB Sc AM5 B650M-HDV/M.2, AMD B650, 2xDDR5, 1xDP, 1xHDMI, mATX
Skladem 99 ks
2 333 Kč
/ ks
1 928 Kč bez DPH

Kompletní specifikace

ASRock B650M-HDV/M.2

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ (OC)
2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA™ 2 Graphics
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer, BIOS Flashback

CPU

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

Chipset

AMD B650

Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
- Max. capacity of system memory: 96GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

- 1 x USB 3.2 Gen2 Type-C (Front)
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

Connector

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header

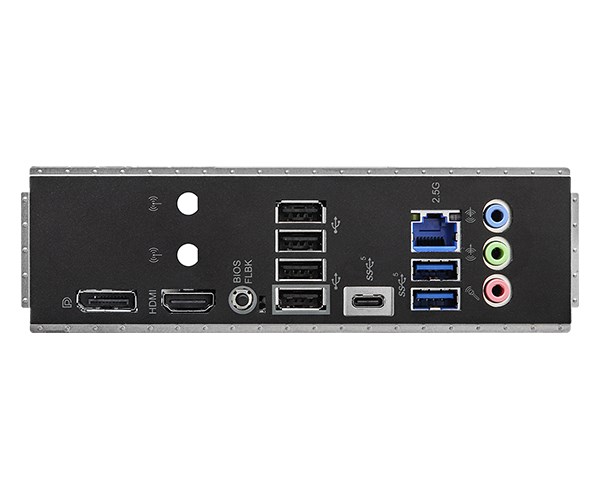

Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Unique Feature

Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Gaming
- 2.5G LAN EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

Accessories

- 1 x User Manual
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Form Factor

- Micro ATX Form Factor: 24.4 cm x 22.6 cm
- 2oz Copper PCB
