ASUS MB Sc LGA1851 PRIME H810M-K, Intel H810, 2xDDR5, 1xHDMI, 1xVGA, mATX

ASUS MB Sc LGA1851 PRIME H810M-K, Intel H810, 2xDDR5, 1xHDMI, 1xVGA, mATX

Name: ASUS MB Sc LGA1851 PRIME H810M-K, Intel H810, 2xDDR5, 1xHDMI, 1xVGA, mATX
Brand: Asus
SKU: 110977
Price: 2134 CZK
Availability: InStock

Ohodnotit produkt

Formát základní desky:micro ATX; Chipset:Intel H810; Socket (patice):Socket 1851; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:2; M.2 slot:2; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové při celý popis

Dostupnost

Skladem 33 ks

2 134 Kč

/ ks

1 763 Kč

bez DPH

Číslo produktu:sde-1887845

EAN kód:4711636292290

Výrobce:Asus

Záruka:36 Měsíc(ů)

Hlídat cenu / dostupnost

Doprava zdarma při objednávce od 5000 Kč

Servis tiskárenV Plzni již od roku 1998

Kamenná prodejna v PlzniŠimerova 428/3, Plzeň

Oprava počítačů a notebookůRychle a odborně

Kompletní specifikace
Hodnocení 0
ASUS MB Sc LGA1851 PRIME H810M-K, Intel H810, 2xDDR5, 1xHDMI, 1xVGA, mATX
Skladem 33 ks
2 134 Kč
/ ks
1 763 Kč bez DPH

Kompletní specifikace

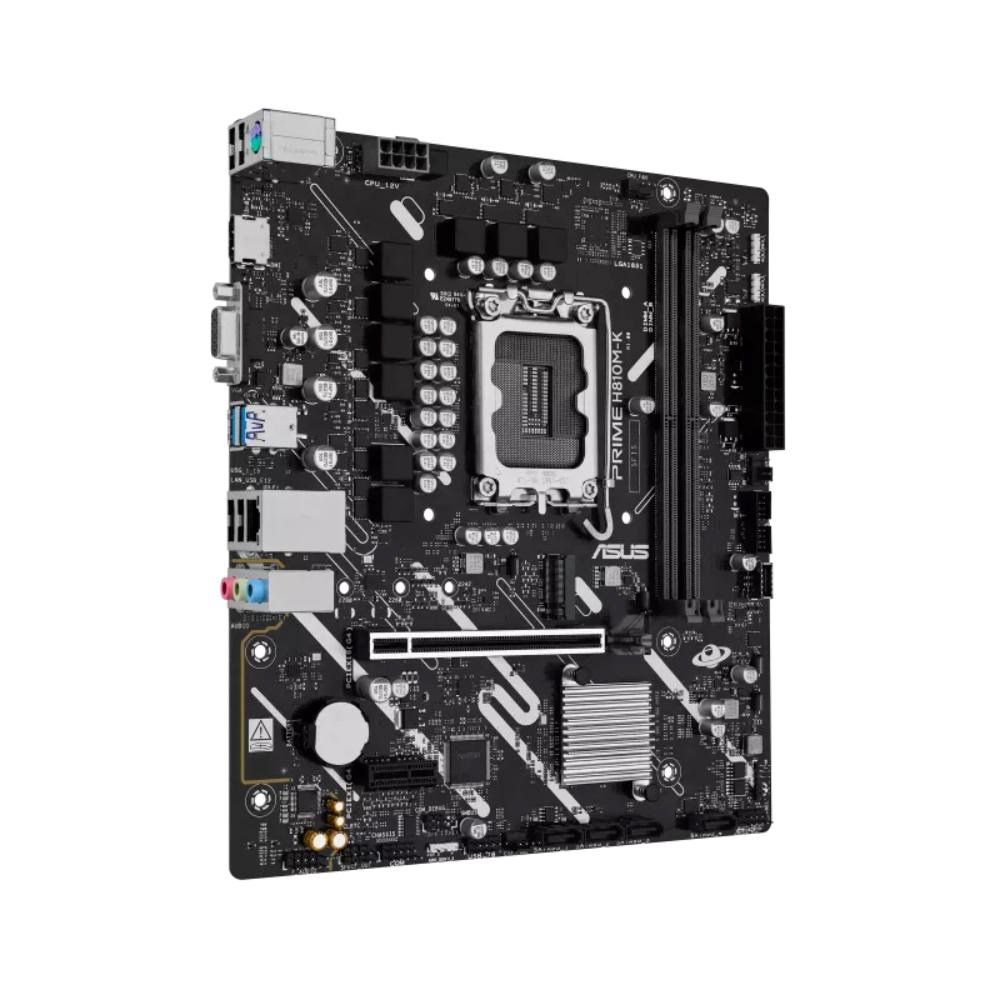

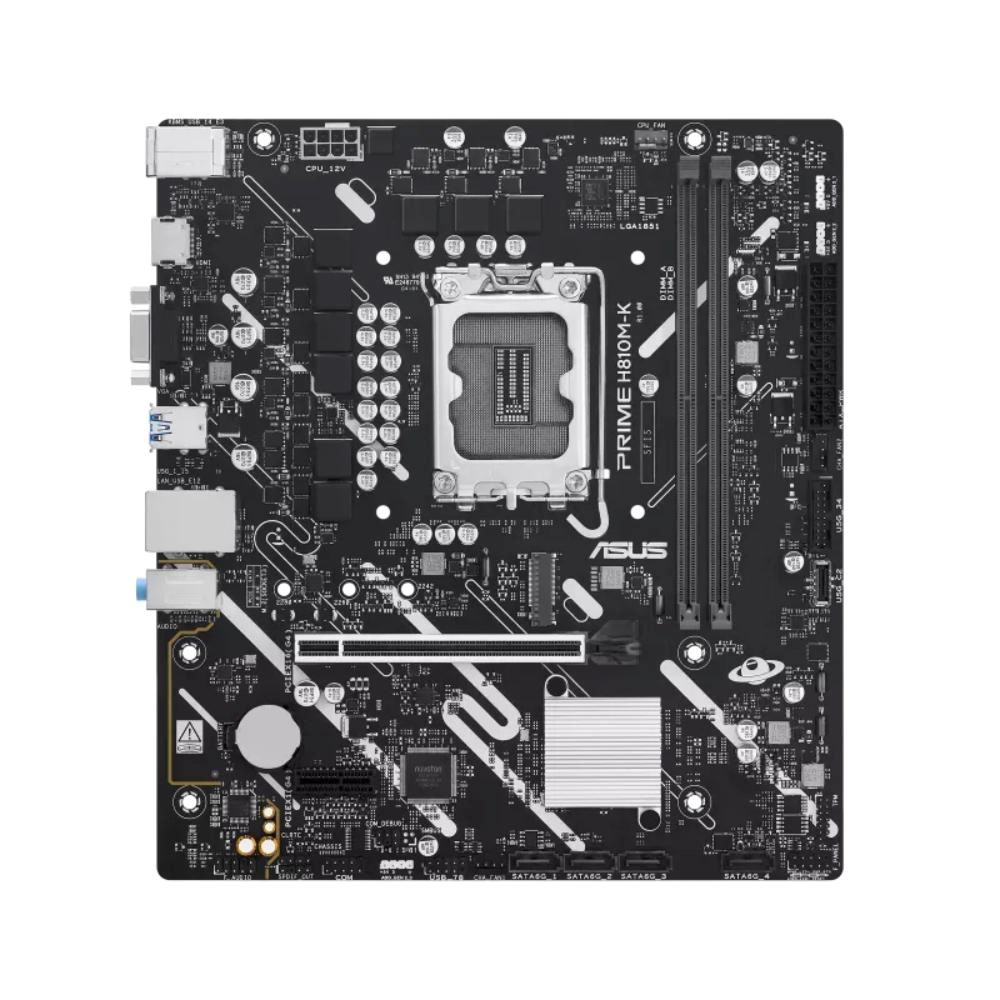

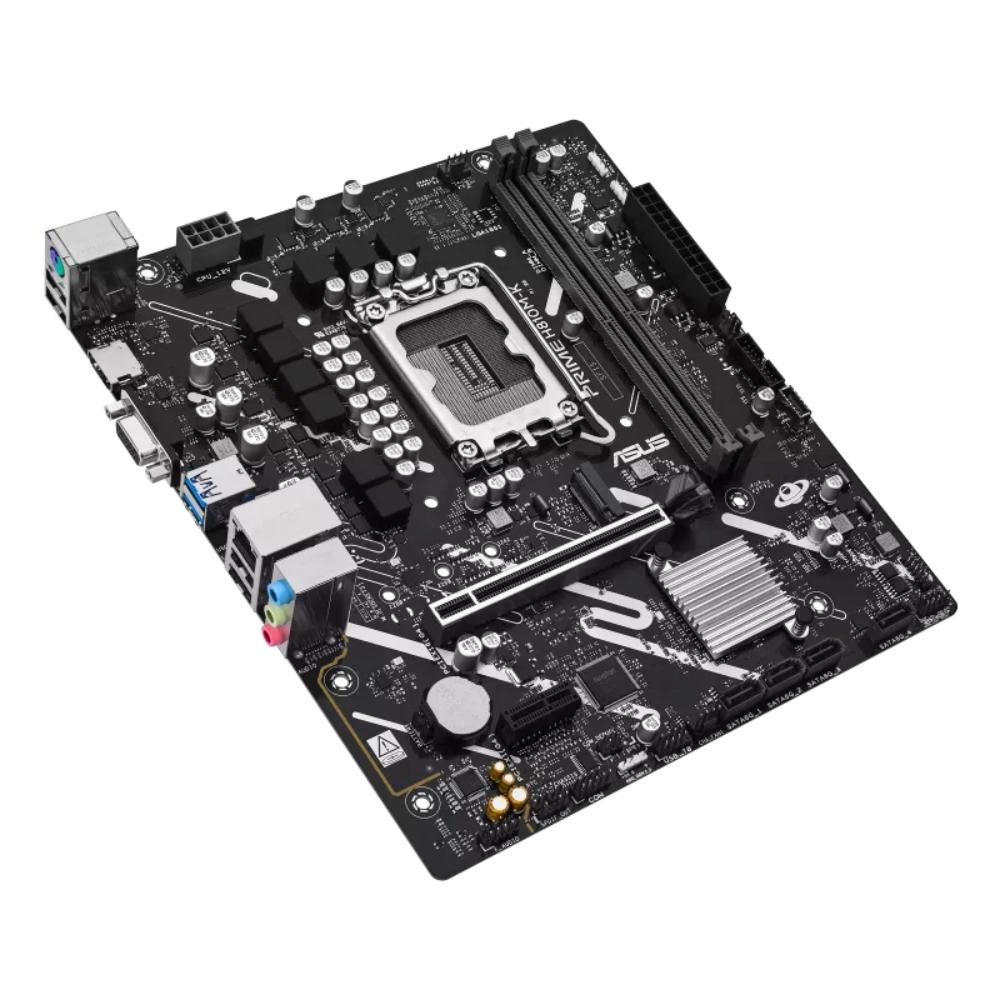

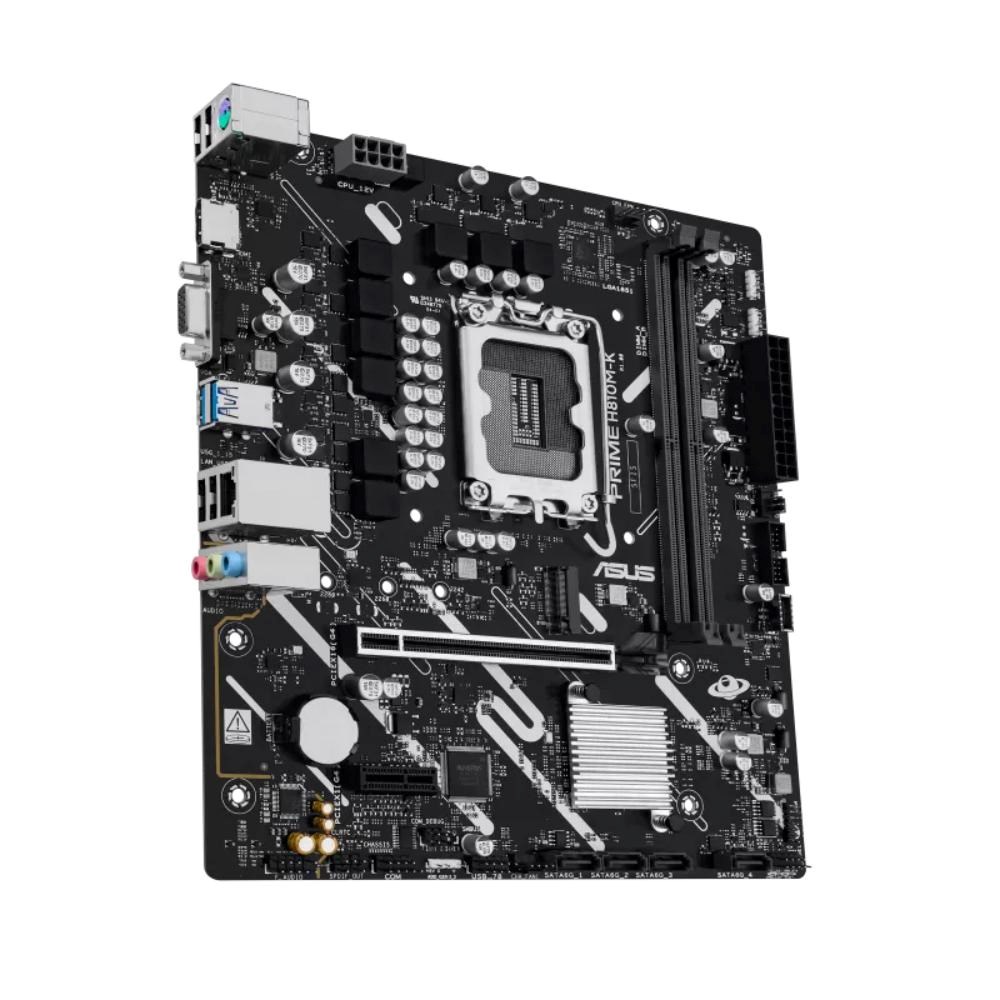

ASUS PRIME H810M-K

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

CPU
Support Intel Core™ Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0
Supports Intel Turbo Boost Max Technology 3.0
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
* Intel Turbo Boost Max Technology 3.0 support depends on CPU type.

Chipset
Intel H810 Chipset

Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports DIMM Fit and DIMM Fit Pro
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)

Graphics
1 x VGA port
1 x HDMI™ port
* Graphics specifications may vary between CPU types.
* Supports 4K@60Hz as specified in HDMI 2.1.
* VGA resolution support depends on processor or graphics card.

Expansion Slots
Intel Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel H810 Chipset
1 x PCIe 4.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H810 Chipset
M.2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard

USB
Rear USB (Total 6 ports)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (USB Type-C)
1 x USB 5Gbps header (2 ports)
1 x USB 2.0 header (2 ports)
* USB Type-C power delivery output max. 5V/3A.
* USB_E1, USB_E2 and USB_E3 share bandwidth.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* Front panel HD audio module required for 7.1 output.

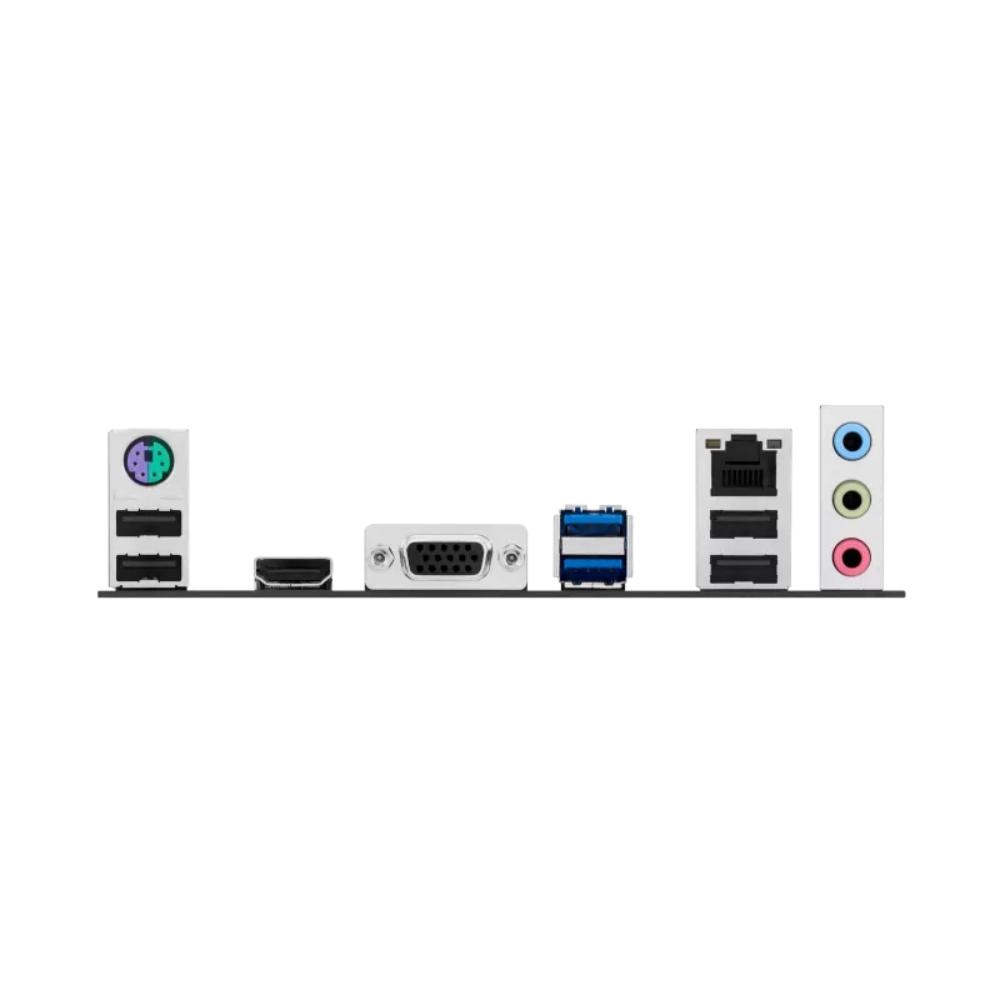

Back Panel I/O Ports
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors
CPU and chassis fan headers
24-pin main power connector
8-pin +12V CPU power connector
1 x M.2 slot
4 x SATA 6Gb/s ports
USB headers including USB Type-C
Addressable RGB Gen2 headers
Clear CMOS header
Chassis intrusion header
COM port header
Front panel audio header
S/PDIF Out header
SPI TPM header
Front panel system header

Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage protection
SafeSlot Core+
Stainless-steel back I/O
ASUS Q-Design
Q-Dashboard
Q-LED Core
Q-Slot
ASUS Thermal Solution
Aluminum heatsink design
Aura Sync with Addressable RGB Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
ASUS DriverHub
ASUS CPU-Z
Adobe Creative Cloud (trial)
Norton 360 Deluxe (trial)
WinRAR (trial)
UEFI BIOS
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

BIOS
2 x 16MB (2 x 128Mb) Flash ROM
UEFI AMI BIOS

Manageability
WOL by PME
PXE

Accessories
2 x SATA 6Gb/s cables

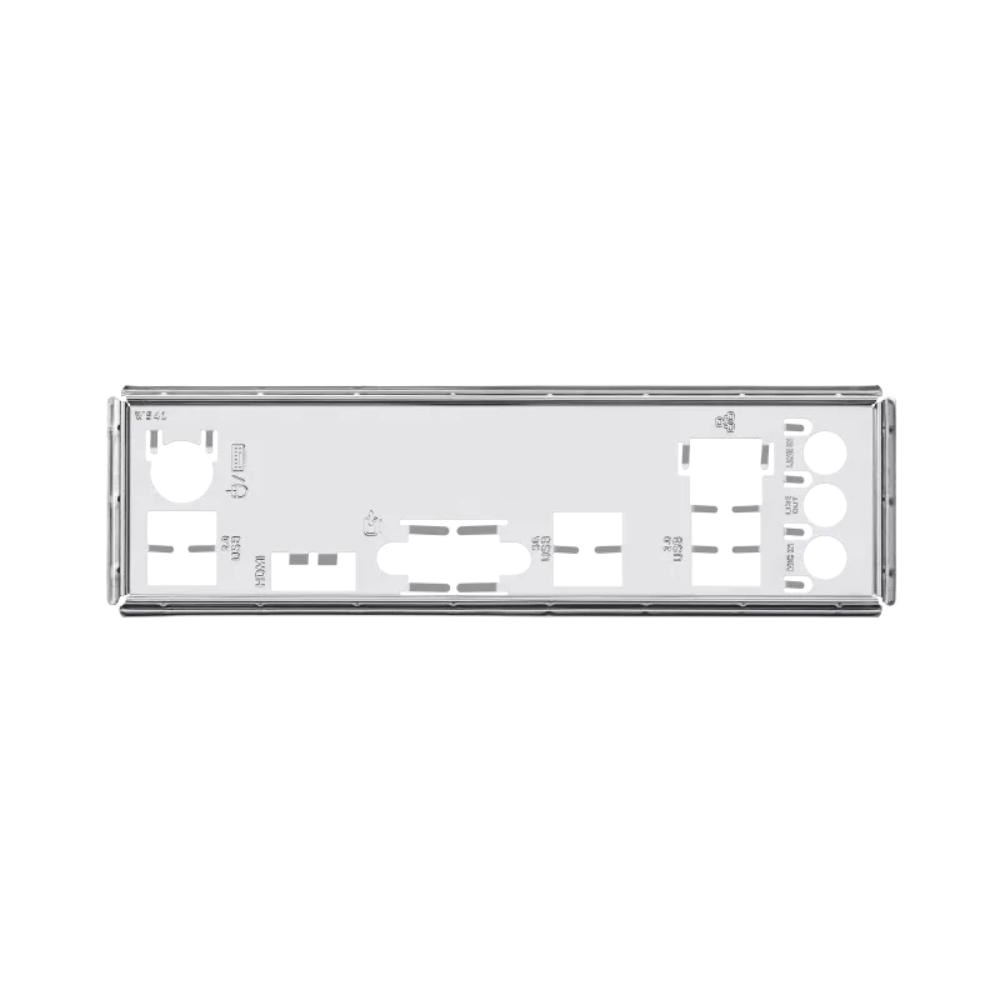

1 x I/O shield
1 x M.2 anchor package
1 x Quick start guide

Operating System
Windows 11 (22H2 & later)
Windows 10 64-bit (21H2 & later)

Form Factor
micro-ATX Form Factor
9.2 inch x 8.3 inch (23.4 cm x 21.1 cm)
