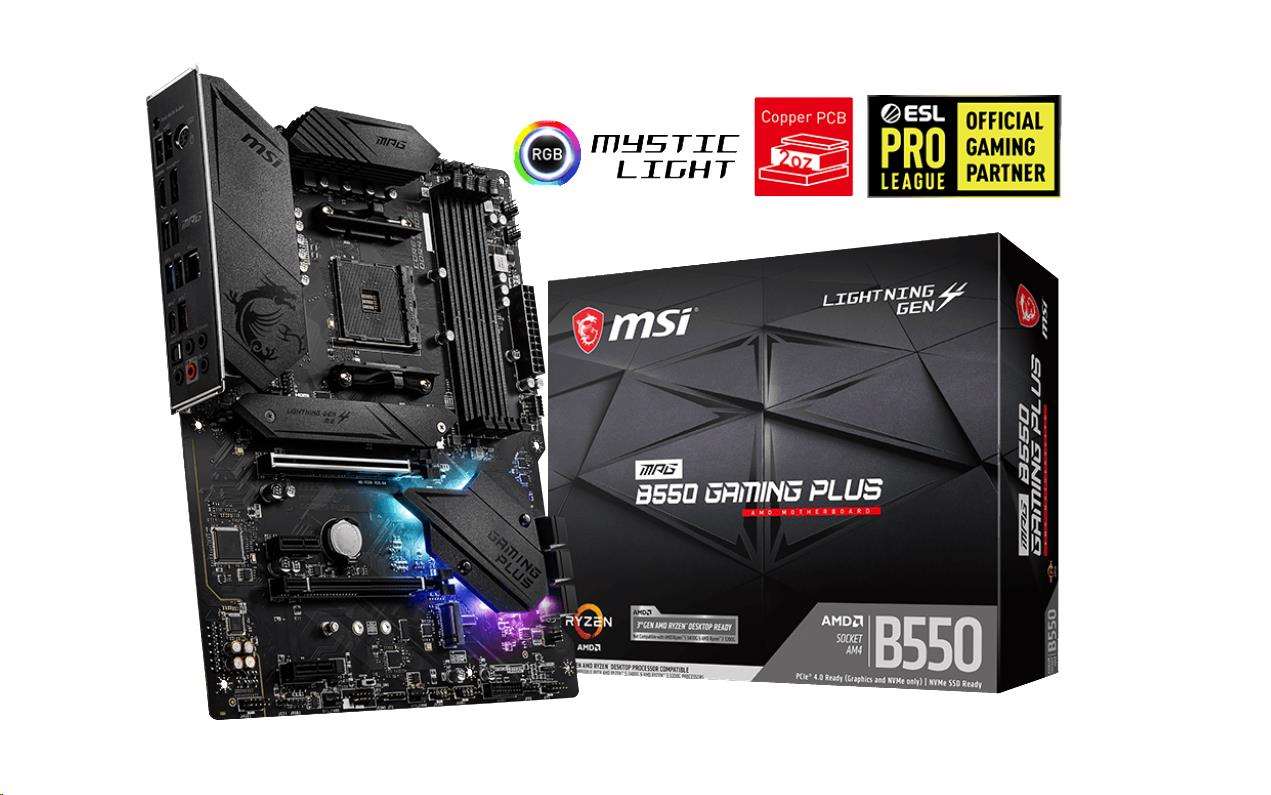

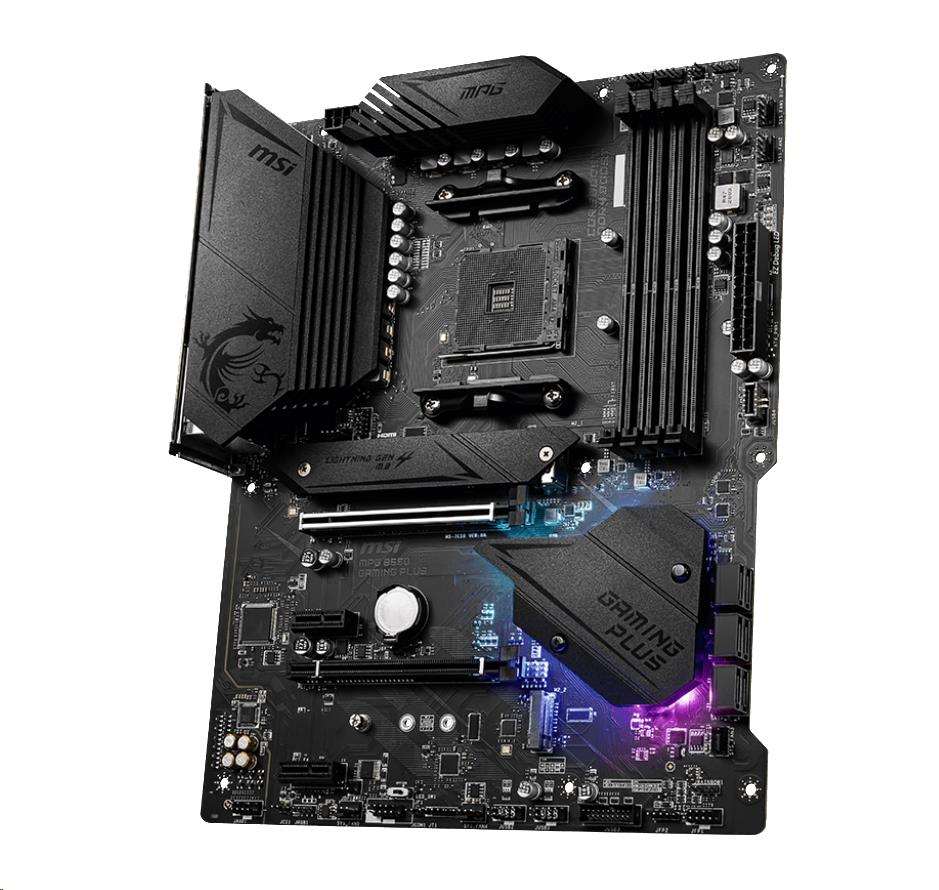

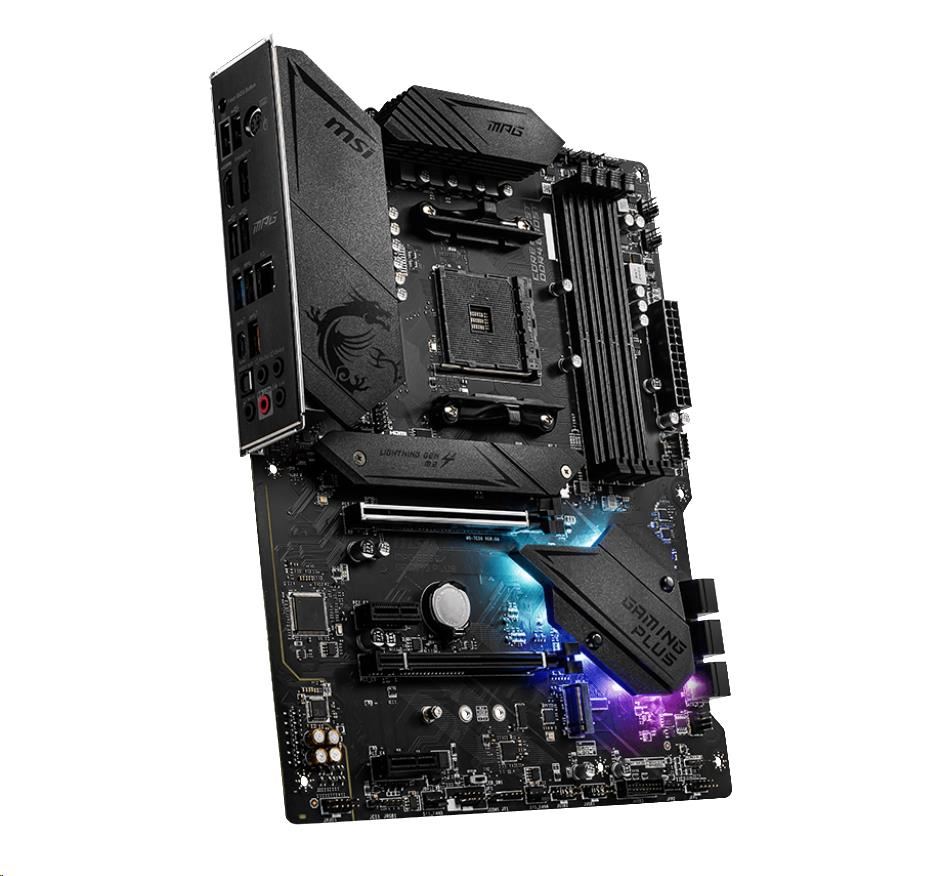

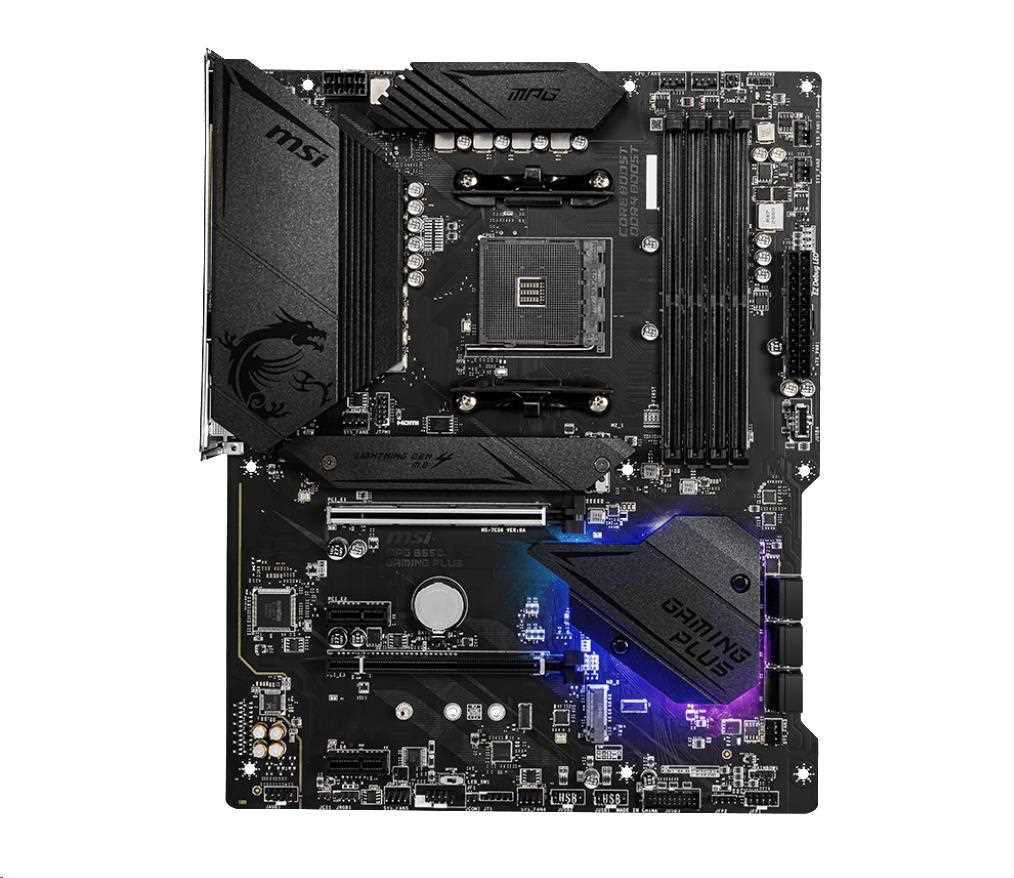

MSI MB Sc AM4 MPG B550 GAMING PLUS, AMD B550, 4xDDR4, VGA, ATX

Ohodnotit produkt

Formát základní desky:ATX; Chipset:AMD B550; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:6; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI Express x1:2; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VG celý popis

Dostupnost

Skladem 99 ks

3 248 Kč

/ ks

2 684 Kč

bez DPH

Číslo produktu:sde-2647954

EAN kód:4719072731885

Výrobce:MSI

Záruka:36 Měsíc(ů)

Hlídat cenu / dostupnost

Doprava zdarma při objednávce od 5000 Kč

Servis tiskárenV Plzni již od roku 1998

Kamenná prodejna v PlzniŠimerova 428/3, Plzeň

Oprava počítačů a notebookůRychle a odborně

Kompletní specifikace
Hodnocení 0
MSI MB Sc AM4 MPG B550 GAMING PLUS, AMD B550, 4xDDR4, VGA, ATX
Skladem 99 ks
3 248 Kč
/ ks
2 684 Kč bez DPH

Kompletní specifikace

MPG B550 GAMING PLUS

TECHNICAL SPECIFICATIONS

CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer www.msi.com for more information on compatible memory.
Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 16 GB Available for the processor with integrated graphics.
MULTI-GPU	Supports 2-Way AMD CrossFire™ Technology
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek 8111HN Gigabit LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

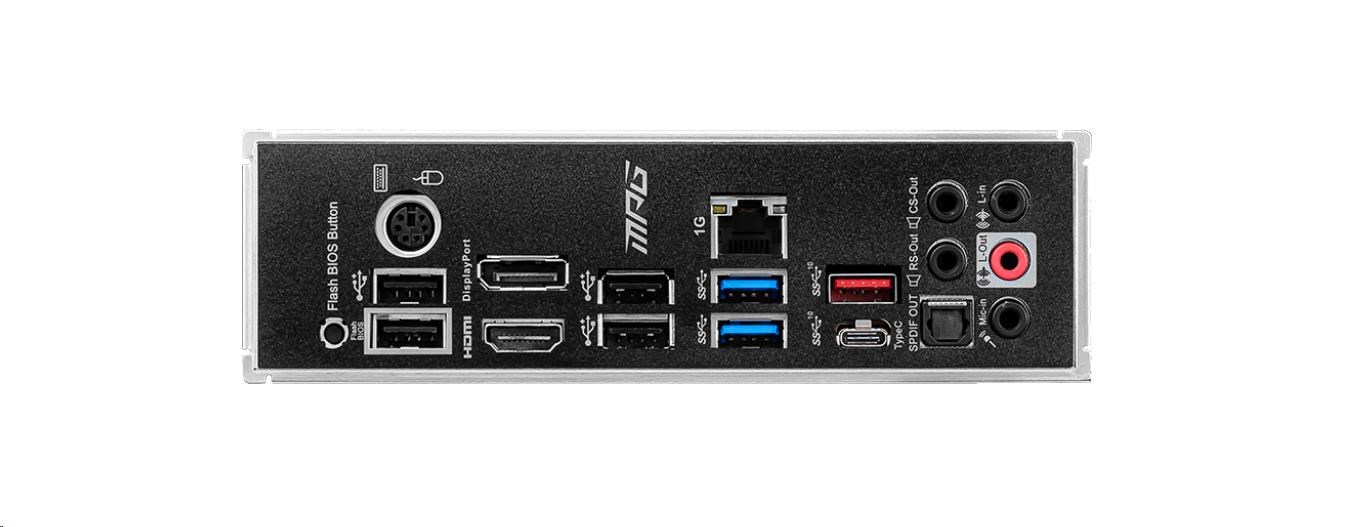

Back Panel Ports	PS/2 Combo Port DisplayPort LAN Port USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Led Features	1x EZ LED Control switch 4x EZ Debug LED
I/O Controller	NUVOTON NCT6687-R Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
